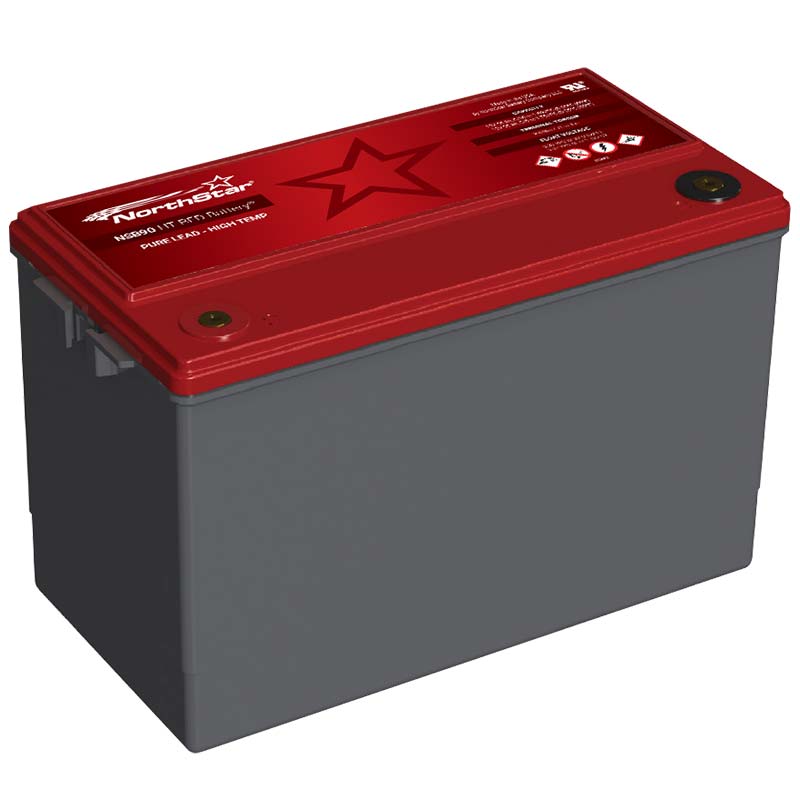

Enersys NSB 90TT HT RED Battery

Manufacturer Part Number: NSB 90TT HT RED

Additional information

Manufacturer

Your Price: $0.00
Add to Quote
tempest-customer-support

Questions? Ask our experts today.

Enersys NSB 90TT HT RED Battery
Pure Lead – High Temp

NorthStar Enersys NSB 90TT HT RED delivers long life in unreliable grid conditions even at high temperatures.

The NSB 90TT HT RED Battery® provides exceptional performance and long float life, even at elevated temperatures. This means huge potential cost savings, due to reduced battery replacement, cooling and maintenance. Conventional lead acid batteries use lead alloys with additives which increase the strength so they can withstand handling during the battery making process. The downside of using these alloys and additives is that the batteries suffer from faster corrosion and component aging. The NorthStar Enersys advanced manufacturing process eliminates the need for alloys and additives. Their AGM thin plate pure lead technology delivers larger and thinner plates, which means more surface area for active material reactions, which increases power density.

Features

  • Pure lead electrochemistry greatly increases temp and corrosion resistance while reducing component aging
  • Thin plates deliver large surface area high power density and low resistance
  • Design life 15+ years at 20°C (68°F)
  • Extra long life at high temp operation 40°C (104°F)
  • EUROBAT design life definition: Very Long Life (12+ years)
  • Advanced 3 stage terminal design to ensure leak-free operation – brass terminals provide maximum performance
  • Approved as non-hazardous cargo for ground, sea and air transport DOT 49CFR173.159(d), (i) and (ii)
  • Fast recharging
  • High cyclic performance
  • Flame retardant (UL 94 VO) and LOI of at least 28%
  • Shelf life of up to 24 months
  • Operating temperature range -40°C to +65°C (-40°F to 149°F)
  • State-of-the-art automated manufacturing ensures consistency and reliability
  • High modulus Polyphenylene Oxide (PPO) plastic materials designed to withstand extended elevated operating temperatures and maintain high battery compression essential for reliable operation
  • Non-halogenated thermally sealed plastic casing

Specifications

Terminal Female M6 x 1.0
Terminal torque 8.0 Nm (71 in-lbs)
1 hr capacity to 1.70VPC @ 20/25°C (68/77°F) 74 / 77 Ah
3 hr capacity to 1.75VPC @ 20/25°C (68/77°F) 86 / 89 Ah
8 hr capacity to 1.75VPC @ 20/25°C (68/77°F) 94 / 96 Ah
10 hr capacity to 1.80VPC @ 20/25°C (68/77°F) 96 / 97 Ah
Float voltage @ 20/25°C (68/77°F) 2.28 / 2.27 VPC
Impedance (1Khz) 2.8 mΩ @ 25°C (77°F)
Conductance 1803 S
Short circuit current 3600 A
Operation temperature range -40°C to +65°C
Nominal voltage 12 V
Height 8.4 in
Width 6.8 in
Length 13.4 in
Weight 76 lbs

All NorthStar batteries are compliant with: Telcordia SR4228, IEC 60896; Bellcore GR-63-Core, Issue 1; British, German, and Russian telecom standards; UL approved and UN2800 certified. NorthStar is registered to ISO 9001 and ISO 14001. Please refer to Data Sheet for additional specifications.
