GNB VRLA-AGM Absolyte Battery

Manufacturer Part Number: 1-100G99

Additional information

Manufacturer

Your Price: $0.00
tempest-customer-support

Questions? Ask our experts today.

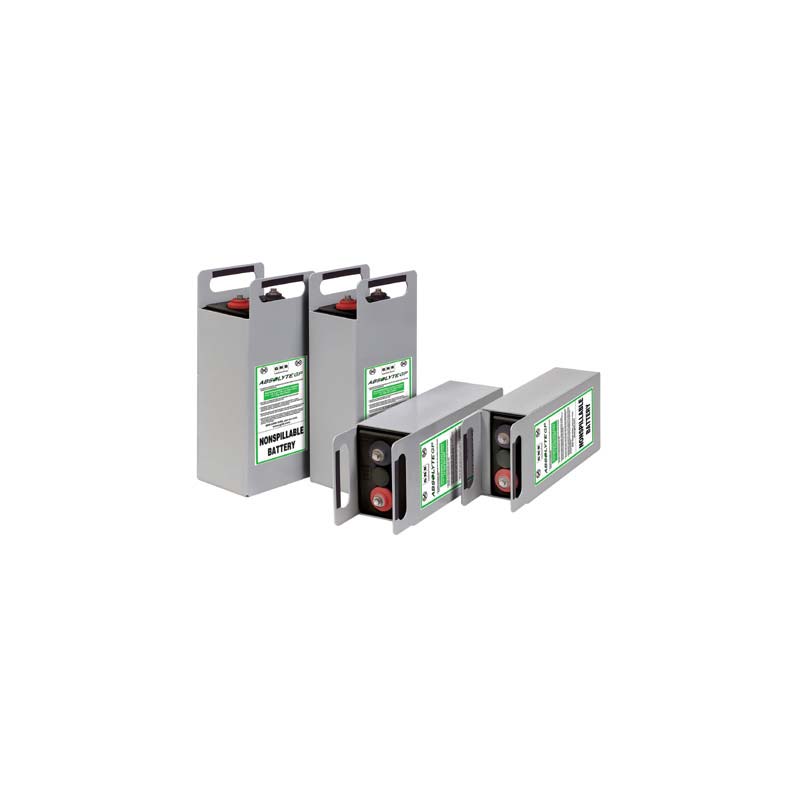

GNB Industrial 1-100G99 5460Ah 2VDC Absolyte VRLA Battery
High capacity in a small footprint

This battery can only ship via freight truck. If you have any questions about shipping methods, please call us at 805.879.5050.

The Absolyte 2VDC VRLA Battery battery is of the valve-regulated lead-acid (VRLA) design and so can operate with lower maintenance (e.g. no maintenance water additions) in comparison to conventional flooded lead-acid batteries. The Absolyte GP VRLA design is also inherently safer than conventional flooded lead-acid batteries. Under normal operating conditions and use, the Absolyte GP battery minimizes hydrogen gas release, and virtually eliminates acid misting and acid leakage.

Features:

  • Battery Voltage: 2 Volts DC
  • Total Amp-hours @ 20 hour rate: 5460 Amp-hours
  • Total Amp-hours @ 100 hour rate: 6300 Amp-hours
  • Weight: 795 pounds
  • Dimensions (L x W x H): 42.50" x 26.38" x 8.59"
  • Electrolyte – 1.310 specific gravity acid (nominal)
  • Safety vent – 3-10 psi opening pressure, self-resealing
  • Terminals – Solid copper insert
  • Positive plate – Patented lead calcium tin silver alloy
  • Negative plate – Lead calcium grid alloy
  • 20 years design life in float applications at 25°C (77°F)
  • 1200 cycles to 80% DOD at 25°C (77°F)
  • Operating temperature – Temperature excursions between -40°C (-40°F) to +50°C (122°F) allowed (battery performance and life will be affected)
  • Self-discharge – 0.5 to 1% per week maximum @ 25°C (77°F)
  • Float voltage – 2.23 to 2.27 Volts per cell

Please refer to the Data Sheet for additional specifications.

Data Sheet
