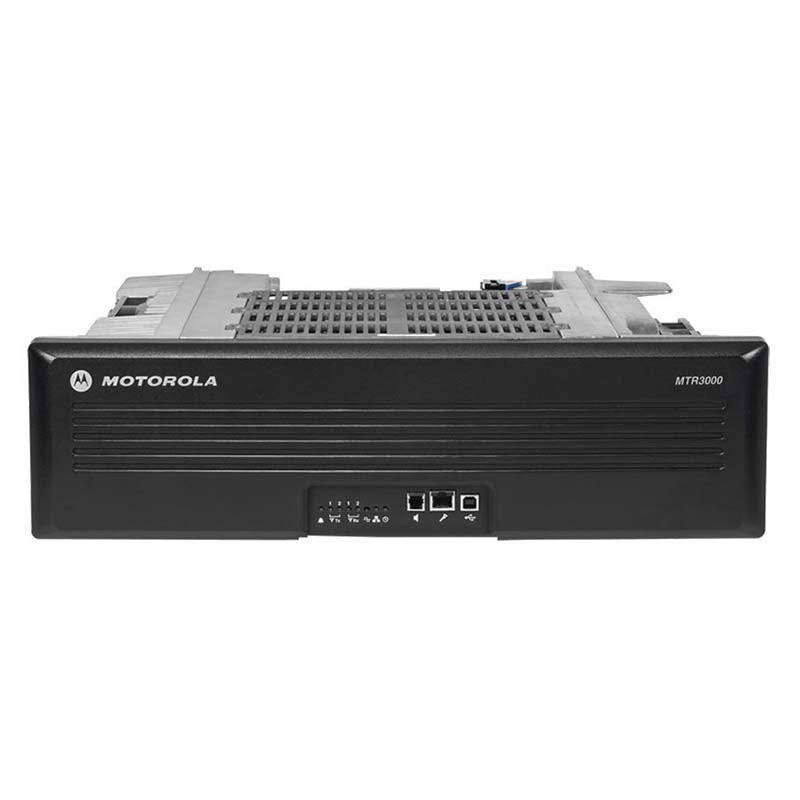

Motorola MTR3000 Base Station/Repeater

Motorola MTR3000 Base Station/Repeater
Extend Coverage and Capacity Easily

Motorola’s MTR3000 is a MOTOTRBO™ integrated voice and data base-station/repeater designed to meet the requirements of small public safety, utilities and professional organizations. The MTR3000 is a robust, high powered base station / repeater that offers reliability, future expandability, and the ease of migration from analog to digital technology. It integrates voice and data seamlessly, offers enhanced features that are easy to use and delivers increased capacity while the MTR3000 satellite receiver model helps enhance analog coverage. So no matter your needs, the MTR3000 provides a flexible communication solution from the field to the factory floor.

Combining the best of two-way radio with digital technology, MOTOTRBO delivers increased capacity, exceptional voice quality, enhanced battery performance and integrated data communication. MOTOTRBO is built to the globally recognized ETSI DMR Tier 2 standard.

Available in UHF, VHF, and 800 / 900 MHz frequency bands, MTR3000 is 100-watt, continuous duty base station/repeater that operates in digital mode in MOTOTRBO Conventional, IP Site Connect, Capacity Plus and Connect Plus systems. In addition, the MTR3000 can also operate in analog mode for conventional and LTR® /PassPort™ trunking systems.

See Motorola MOTOTRBO 3000 Digital Repeater

MTR3000 Standard Features:

• Operates in analog or MOTOTRBO digital mode with LED indicating mode of operation
• Reliable 100W continuous duty cycle operation
• 12.5 or 25 kHz programmable channel spacing
• Analog and digital conventions are all standard in one base station without the cost of additional software or hardware
• RoHS (Restriction of Hazardous Substances) compliant

MTR3000 programmed in MOTOTRBO mode provides:

• Supports two simultaneous voice paths in digital 12.5 kHz TDMA 6.25e compliant
• Divides existing channel into two timeslots, delivering twice the capacity through a single repeater
• Supports MOTOTRBO IP Site Connect for increased wide area coverage and Capacity Plus single site trunking without a separate hardware controller.

• Frequency range: VHF: 146-174 MHz; UHF: 403-410, 417-422, 433-450, 469-470 MHz
• Channel spacing (kHz): 12.5, 25
• Power: 8-40 watts (VHF); 8-60 watts (UHF)

Please refer to Data Sheet for complete specifications.
