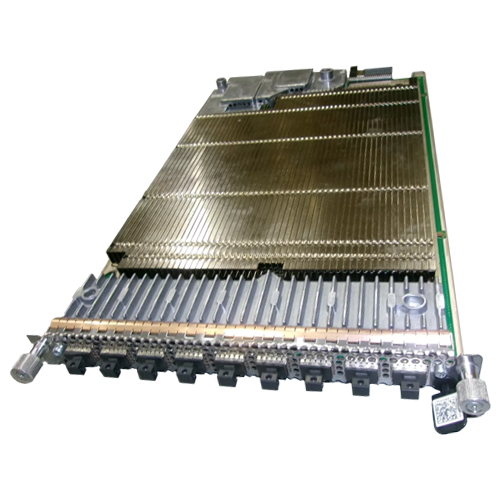

Nokia 475266A ABIO AirScale Capacity: High-Performance 5G Plug-in Unit
Unleash the Power of 5G with Nokia’s ABIO AirScale Capacity
Nokia’s 475266A ABIO AirScale Capacity is a cutting-edge plug-in unit designed to supercharge your 5G network. This high-performance solution delivers exceptional speed, capacity, and reliability, enabling you to meet the growing demands of your users.
Key Features:
- Unmatched Capacity: Handle soaring data traffic with ease thanks to support for both 5G NR wideband and narrowband cells, as well as LTE and 5G NR simultaneously.
- Flexible Deployment: Seamlessly integrate into your existing infrastructure with compatibility for ASIB and ASIL common unit support, and AMIA, AMOB, and AMOD subracks.
- Versatile Connectivity: Connect effortlessly with OBSAI, CPRI, or eCPRI fronthaul interfaces, ensuring optimal network performance.
- High Throughput: Experience lightning-fast data transfer speeds with up to 14 Gbps DL/UL L1 throughput and support for up to 15,120 RRC users.
- Advanced Technology: Benefit from mMIMO technology with 32DL/16UL layers for enhanced coverage and capacity.
- Compact and Efficient: The unit’s small footprint and low power consumption make it ideal for space-constrained environments.
Elevate Your Network Performance
The Nokia 475266A ABIO AirScale Capacity is more than just hardware; it’s a strategic investment in your network’s future. By combining exceptional performance, flexibility, and efficiency, this plug-in unit empowers you to deliver an unparalleled 5G experience to your customers.
Technical Specifications:
- RAT standards: LTE, 5G NR
- Common unit support: ASIB, ASIL
- Subrack compatibility: AMIA, AMOB, AMOD
- Fronthaul interfaces: 9x SFP28
- Supported fronthaul interface types: eCPRI 10/25 Gbps, CPRI up to 9.8 Gbps, OBSAI 3/6 Gbps
- L1 throughput DL/UL: 14 Gbps/7 Gbps
- Number of RRC Users: 15 120
- 5G NR Wideband capacity: Up to 12 cells 100 MHz
- mMimo: 32DL/16UL layers
- LTE/5G NR Narrowband capacity: Up to 48 cells 2T2R or 4T4R
- Diagonal link support: Yes
- Dimensions (H x W x D): 25 mm x 219 mm x 364 mm
- Weight: 2.65 kg
- Power consumption: Typical 160W [at 25°C according ETSI ES202 706], Max 270W [all ports with SFP’s and cables at max ambient temperature]
- Operational temperature range: -5°C to +55°C Front-to-Back airflow
- Environmental protection: IP20, ETSI EN 300 019-1-3, class 3.1E
