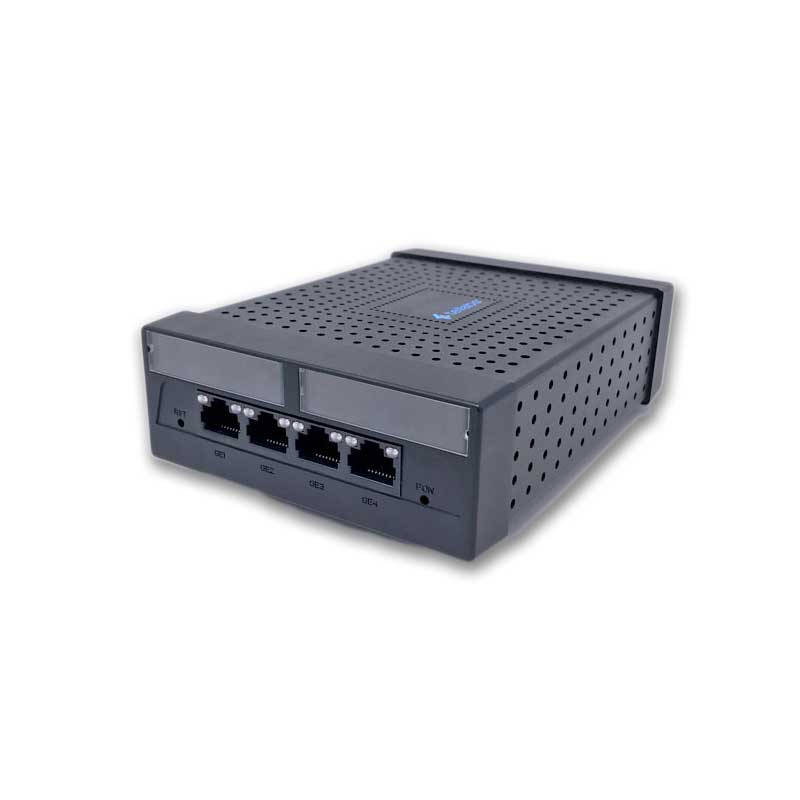

Tellabs 140C Optical Network Terminal (ONT140C)

Manufacturer Part Number: 81.11G-ONT140C-R6

Additional information

Manufacturer

Your Price: $0.00
Add to Quote
tempest-customer-support

Questions? Ask our experts today.

Tellabs 140C Optical Network Terminal (ONT140C)
High-density and scalable Gigabit Ethernet connectivity

The Tellabs 140C Optical Network Terminal (ONTs) provides high-density Gigabit Ethernet connectivity that is a scalable and smart choice for the new enterprise LAN. This ONT supports the modern office and extended campus environments, and can be integrated inside office furniture, secured to a wall, mounted underneath a desk or just be free-standing on a desktop. All enterprise services and applications can be delivered, including voice, video, high-speed data, wireless, security, access controls and building automation. Like all Tellabs ONTs, the Tellabs 140C ONT provides simple, smart and scalable gigabit-speed services in all enterprise LAN environments, including government, financial, education, healthcare and hospitality.

Advanced IP and Ethernet
Uses industry-leading software-defined traffic management, security, provisioning and quality of service mechanisms.

Voice
The Tellabs 140C ONT supports enterprise VoIP connectivity with the latest unified communications systems such as Avaya and Cisco Unified Communications Call Manager can be delivered over fiber.

Video
Supports all enterprise IP-based video traffic (e.g., entertainment, surveillance, conferencing)

Powering
The Tellabs ONT140C is designed with local power, local Battery Backup Unit (BBU) and remote powering options. Remote powering is supported using a centrally located bulk power plant, emergency power and bulk battery back-up over composite single mode fiber (greenfield).

Power over Ethernet (PoE)
Both IEEE 802.3af PoE and high-power PoE+ IEEE 802.3at, including Class-4 negotiations can be selected on per port basis. The maximum PoE power is 60 watts, spread across all four Ethernet ports.

Mounting
Tellabs 140C ONT mounting can be located above the desk or below the desk, within the raceways of modular cubicle work environments or ONTs can be wall mounted. Where security is a priority, lockable enclosures can be used for any of the above-listed locations. They can also be mounted in zone boxes, plenum space and in raised floors.

  • Uses Tellabs industry-leading software-defined global profiles, traffic management, security, provisioning and traffic management mechanisms
  • Enterprise grade G-PON ITU-T G.984 implementation
  • Advanced IP and Ethernet Functions
  • Both IEEE 802.3af Power over Ethernet (PoE) and high-power PoE+ IEEE 802.3at
  • Flexible mounting above or below the desk, within the raceways of modular cubicle furniture, lockable enclosures, zone boxes in ceilings or raised floors and plenum brackets
  • Supports IP-based voice, all forms of enterprise IP-based data traffic and all forms of enterprise IP-based video traffic
  • Built-in audible location indicator for easy installation and labeling identification
  • Enclosure’s fire retardant plastic passes plenum fire test
  • Supports Dante and CobraNet digital audio systems over IP

Please refer to Data Sheet for complete specifications.

Data Sheet
