Westell A90-DCP10X10 DC Breaker/Fuse Panel

Manufacturer Part Number: A90-DCP10X10

Additional information


Your Price: $0.00
Add to Quote

Tempest Makes It Simple

Can’t find what you need? Tell us, and we’ll get it for you.

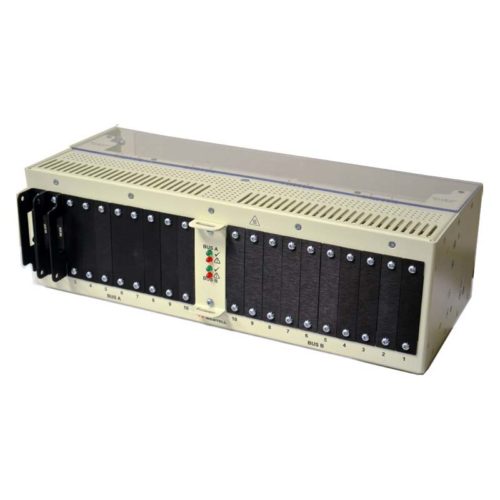

Westell A90-DCP10X10 (DCP) High Current DC Breaker/Fuse Panel
High Current 600Amps/bus DC Power Distribution Panel

The Westell A90-DCP10X10 Fuse and Alarm Panel is a High Current DC Panel that’s 3 RUs high, with mounting ears for 19″ or 23″ rack mounting.

Westell’s power distribution unit, the DCP10X10 (DCP) High Current DC Breaker/Fuse Panel, offers some of the industries highest amperages available in a compact high-density package. With a dual 600 Amps bus, it is a perfect fit for the applications limited on space and provides several options for protecting network equipment such as, breakers or fuses (TPS, TLS and TPC). With standard Westell panel features like wide operating voltage range (+/-24 to +/-48VDC) and cascading output lugs, this panel exceeds the requirements of today’s networks.

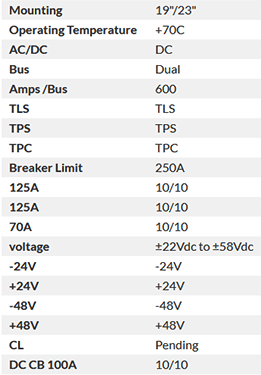

A90-DCP10X10 DC Specs

  • Compact 3-RU rack height
  • Integrated return buss
  • Pluggable field-replaceable breakers or fuses
  • Accommodates mid-trip or non-mid trip breakers
  • 10 position dual bus
  • 600 Amps per bus
  • +/-24 and +/-48VDC operation
  • Front panel LEDs indicate power and alarm status
  • Removeable alarm card generates alarm when breaker or fuse is tripped
  • -40°C to +70°C
  • Fits 19” and 23” racks

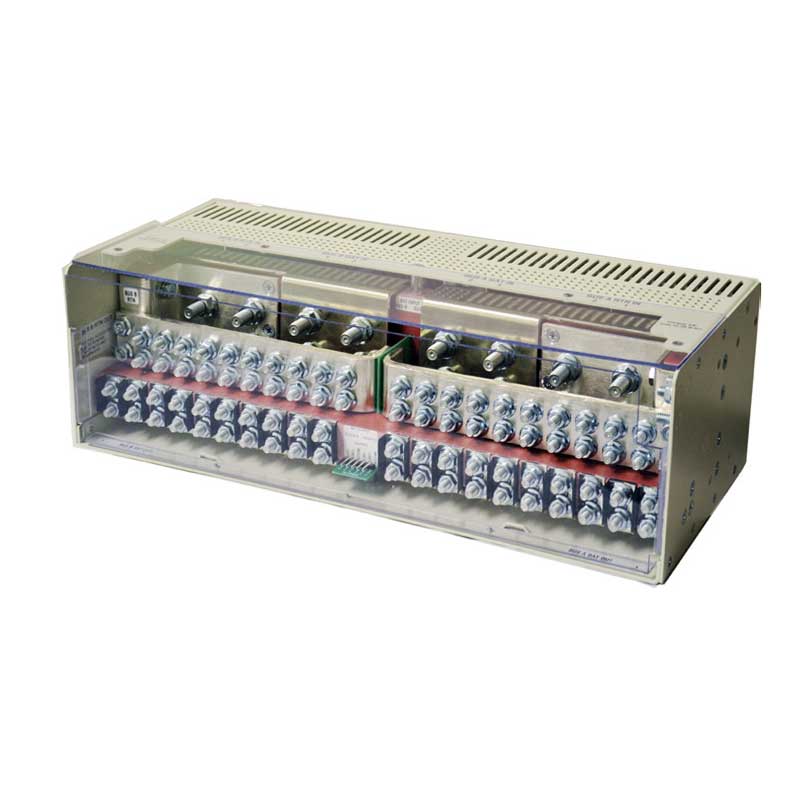

  • Input cables enter from the top or straight out of the back with 90° lugs
  • Output cable exits out the top or straight out of the back with 90° lugs
  • ANSI/UL 60950-1 and CAN/CSA C22.2 No. 60950-1
  • Breakers and Holders:
    • BR-DCPXX-M1BUL: Mid-Trip single pole breaker with actuator guard
    • BR-DCPXX-S1BUL: Non mid-trip single pole breaker with actuator guard
    • FF-DCPTFD-HLDR: TFD holder with extraction handle/guard (order TPS or TLS fuses separately)

Please refer to Data Sheet for additional specifications.
