Westell A99-GMT10-WM-D1 Fuse and Alarm Panel

Westell A99-GMT10-WM-D1 GMT Fuse and Alarm Panel
Single Bus, 10P GMT Fuse Panel

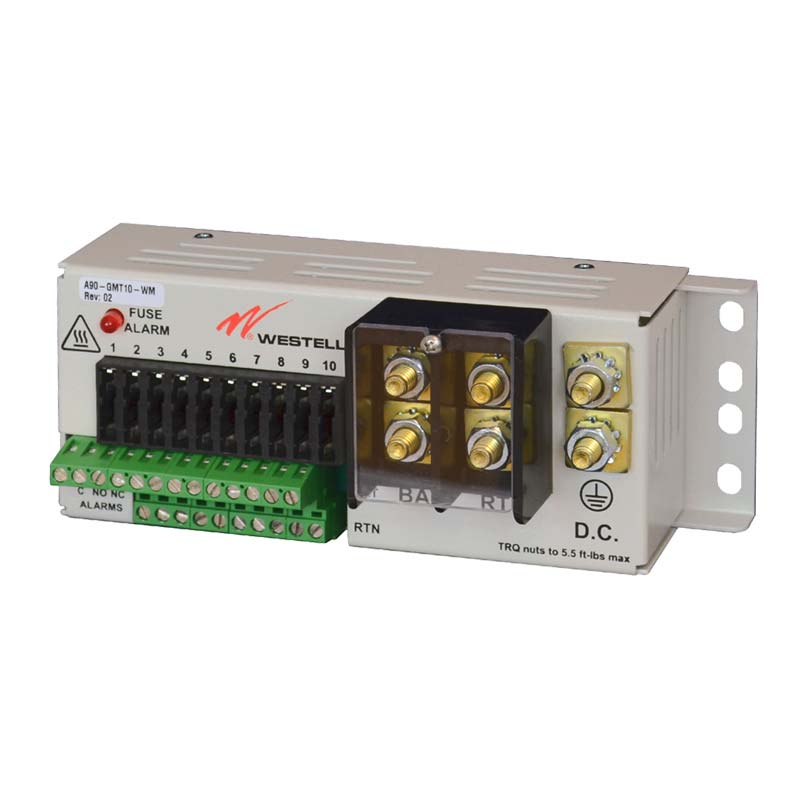

The Westell A90-GMT10-WM-D1 Fuse and Alarm Panel is a single 100 amp bus with ten 15 amp GMT positions that can be wall- or rack/rail-mounted that offers full front access.

Eight GMT fuses included
The A90-GMT10-WM-D1 offers some of the industry’s highest GMT amperages available in a wall or rack-mount, compact and very cost competitive package. With 15 Amp fuses in a single 100A bus, it is a perfect fit for fused DC power distribution for applications with limited space. The product comes standard with a wide operating voltage (±10 to ±58VDC, polarity insensitive), has flexible mounting options, and exceeds the requirements of both legacy and Next Generation networks.

• Eight GMT fuses included, quantity two of each: 15A, 10A, 5A, 2A
• Wall mount and rack mount design
• 15 Amps output current per position
• One bus per panel, with 10 GMT style fuses (15 Amps per GMT position with a bus maximum of 100 Amps)
• Full front access (inputs/outputs/alarms/fuses)
• Form C relay contacts are provided to extend alarms
• Dual ground posts that accept a dual-hole ground lug on 5/8” centers
• Universal voltage range (±10 to ±58VDC) offering network flexibility
• Screw-down lugs on both the inputs (two ¼” studs) and outputs (screw terminals), increasing reliability
• Front panel status LED
• NEBS Level 3 and UL 60950-1

Please refer to Data Sheet for additional specifications.
