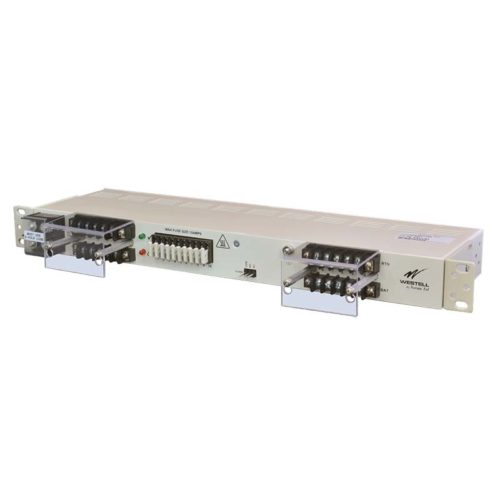

Westell NPGMT1122 15 Amp, Front Access GMT Fuse Panel
10 position, single bus, GMT fuse panel (70A per panel)
Westell’s NPGMT1122 10-position full front access GMT Fuse and Alarm Panel offers some of the industry’s highest GMT amperages available in a rack-mount, compact and very cost competitive package. With 15 Amp fuses in a single bus, 70 Amp panel, it is a perfect fit for fused DC power distribution for applications with limited space.
This Westell fuse panel exceeds the requirements of both legacy and Next Generation networks.
Applications: Wireless, Central Office, Co-locate, Remote Sites, Secondary Distribution
- Cost-effective compact design, expanding application flexibility
- 70 Amps output current per panel
- Single bus with 10 GMT style fuses (70 Amps/panel)
- Full front access (inputs/outputs/alarms/fuses)
- Form C relay contacts are provided to extend alarms
- Ground lug for grounding chassis
- Universal voltage (±24/±48 VDC) offering network flexibility
- Screw-down lugs on both the inputs (two ¼” studs) and outputs (#6 screw terminals), increasing reliability
- Front panel status LEDs and protective front connector shields
- NEBS Level 3 and UL 60950-1

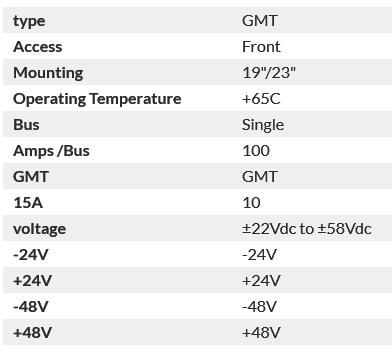

Please refer to Data Sheet for additional specifications.
