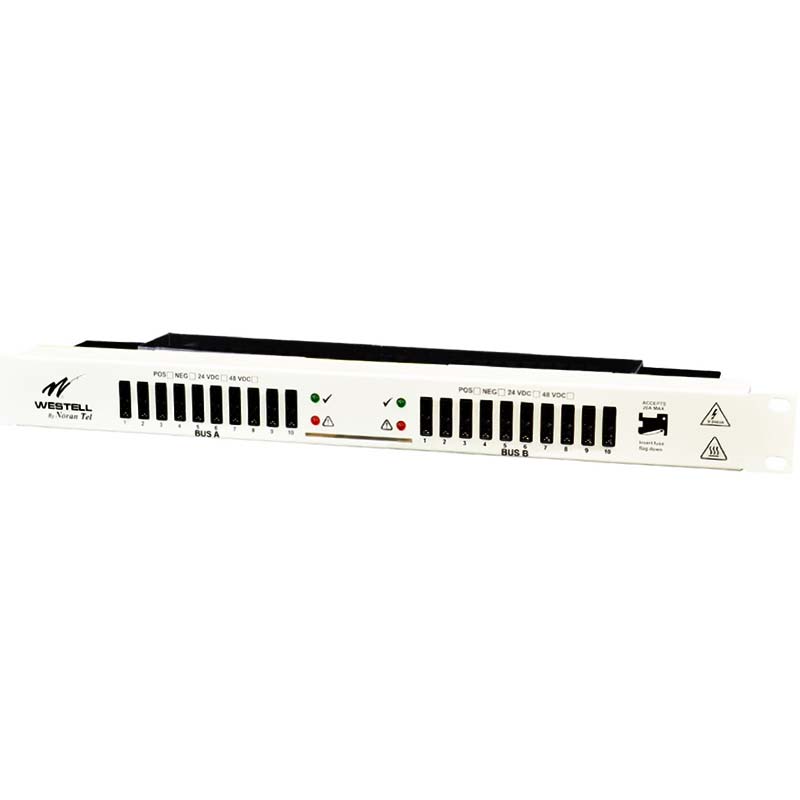

Westell NPGMT1125 Dual Bus GMT Fuse Panel
Dual Bus, +/-24V or +/-48V, 10 GMT/Bus, 19″ 1RU
Westell’s NPGMT1125 GMT Fuse and Alarm Panel offers some of the industry’s highest GMT amperages available in a compact and very cost competitive package.
This Westell fuse panel exceeds the requirements of both legacy and Next Generation networks.
- Cost-effective compact design, expanding application flexibility
- Two isolated groups (busses) with 10 GMT style fuses in each (20Amps/GMT position and a max of 100Amps/bus)
- Two sets of Form C relay contacts are provided to extend alarms
- One set of alarm contacts for each; Bus A and Bus B Alarm
- Dual ground lugs meeting or exceeding carrier specifications
- Universal voltage (±24 and ±48 VDC) offering network flexibility
- Screw-down lugs on both the inputs and outputs increasing reliability
- GMT fuse holders mounted for downward trip indication — easier identification and detection of blown fuses
- NEBS level 3 verified, with zone 4 earthquake; UL Listed

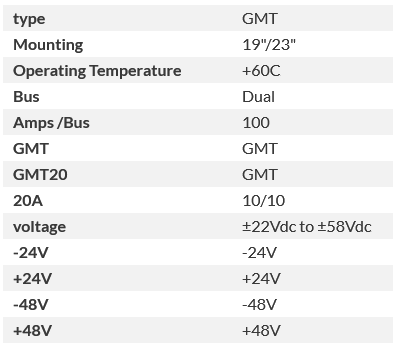

Please refer to Data Sheet for additional specifications.
