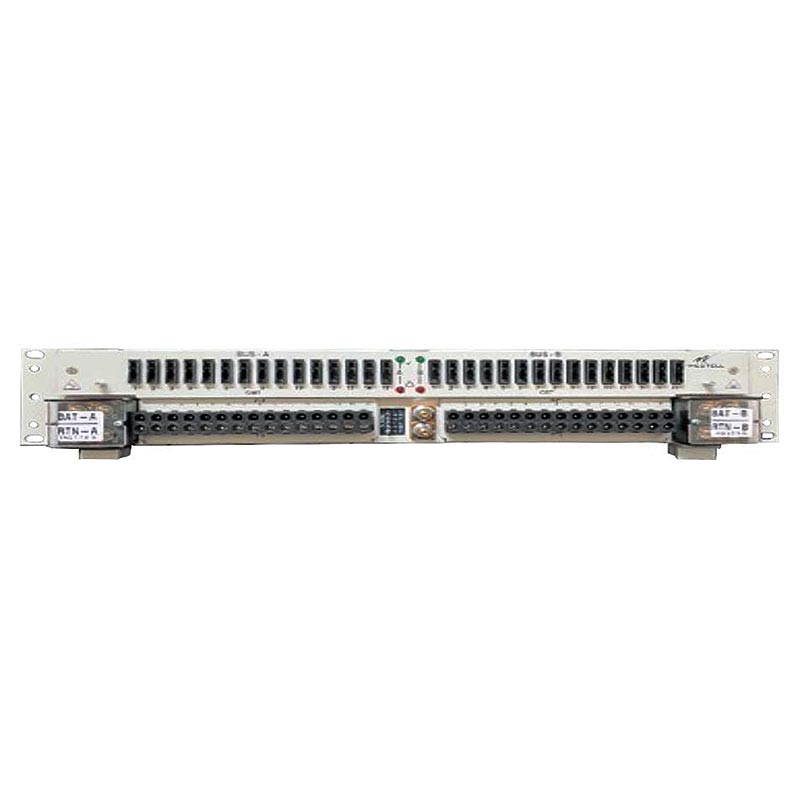

Westell NPGMT150D15-FFA Quick-Connect GMT Fuse Panel
Dual bus, 150A/bus, Fifteen 20A GMT outputs/bus, output connectors, 19/23” rack mount, 1RU
Westell’s NPGMT150D15-FFA Fuse Panel addresses the evolving needs of network engineers, with the highest ampacity in the industry, 150A per bus at +55°C and quick-connect outputs for unparalleled performance and usability. Quick-connect outputs enable simple plug-and-play installation by eliminating the need for lugs and screw-down terminations, as well as enhancing wire management within the rack.
Telecomm networks are continuing to increase their data capacity and speeds. At the same time, wireless networks are increasing their bandwidth and density. To support these increases, network installations need to support higher density of equipment and the power systems need to support higher amperages.
Quick-connect outputs enable simple plug-and-play installation by eliminating the need for lugs and screw-down terminations, as well as enhancing wire management within the rack.
- High input capacity of 160A per bus at +50C in a dual bus design enables the highest efficiency of power distribution in GMT fuse panel applications
- Maximum GMT output capacity of 20A supported for each fuse position
- Front and rear access models support standard and limited access network configurations
- Quick-connect output design allows for a stackable footprint to support optimized equipment layouts
- +65°C operation at >90% ampacity permits a single panel to be used in both outside and inside plant environments with the highest performance and reliability
- 10×10 and 15×15 dual bus models support both moderate and high density 19” rack width applications
- Made in the USA from greater than 60% USA content, built and shipped from Aurora, IL
- Key Applications:
- Wireless back-haul
- Centralized BBU front-haul
- Outside plant
- Walk in cabinets
- Mobile Telephone Switching Office (MTSO)

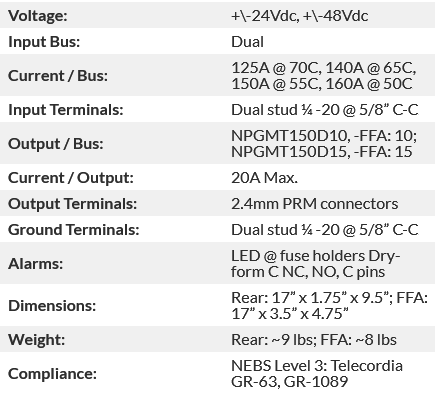

Please refer to Data Sheet for additional specifications and series ordering information.
