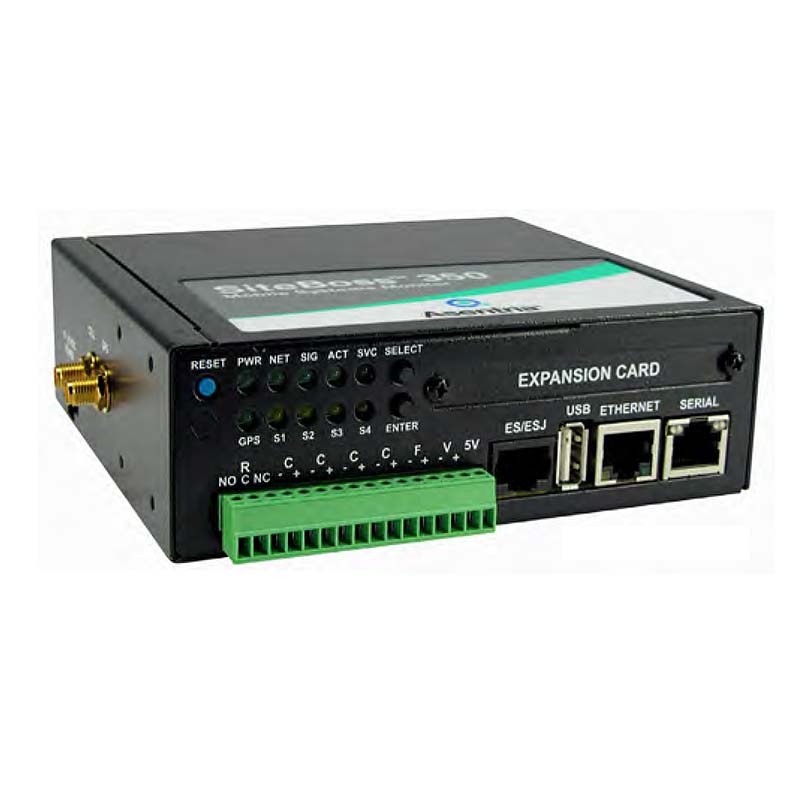

Asentria SiteBoss S350 Site Controller

Asentria SiteBoss S350 Site Controller

Reliable Management for Critical Mobile Generator and Mobile Cell Sites

The SiteBoss S350 was designed specifically to work with mobile generators and mobile cell sites and is used for disaster recovery by telecom operators.

This full-featured SiteBoss was designed specifically to work with mobile generators and mobile cell sites used for disaster recovery by telecom operators. The S350 can monitor fuel levels, generator run-times, and key on-site variables.

This SiteBoss was specifically designed with a DC power input which allows the unit to run off a vehicle battery. Additionally, the S350 has a sophisticated sleep energy efficient sleep mode which prevents unnecessary battery drain.

The S350 has advanced site security and access control options. The S350 features advanced power management, a wireless modem, and an internal GPS receiver. The S350, paired with Asentria’s software utility, allows reliable data transfer and the ability to locate units on a map.

• Unit Width: 5.25in / 13.335cm (5.5in / 13.97cm with modem)
• Unit Depth: 5in / 12.17cm
• Unit Height: 1.75in / 4.445cm
• Unit Weight: 1.164lbs/.528kg (Dependent on configuration)
• Voltage In: 10VDC (Min) / 28VDC(Max)
• Power Usage: 3.9W (typical) / 37.8W(max)
• Operating Temperature: -40° to 60° C
• Operating Humidity: 0 to 95% (Non-condensing)
• RoHS, CE and CSA Certified
• Mean Hours Between Failure: 400,000

Please refer to Data Sheet for complete specifications, including expansion card and configuration information.
