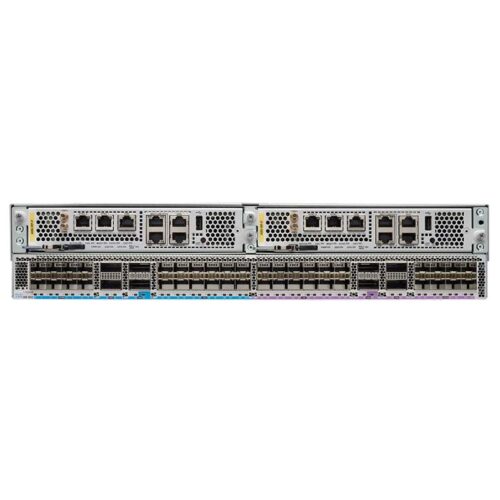

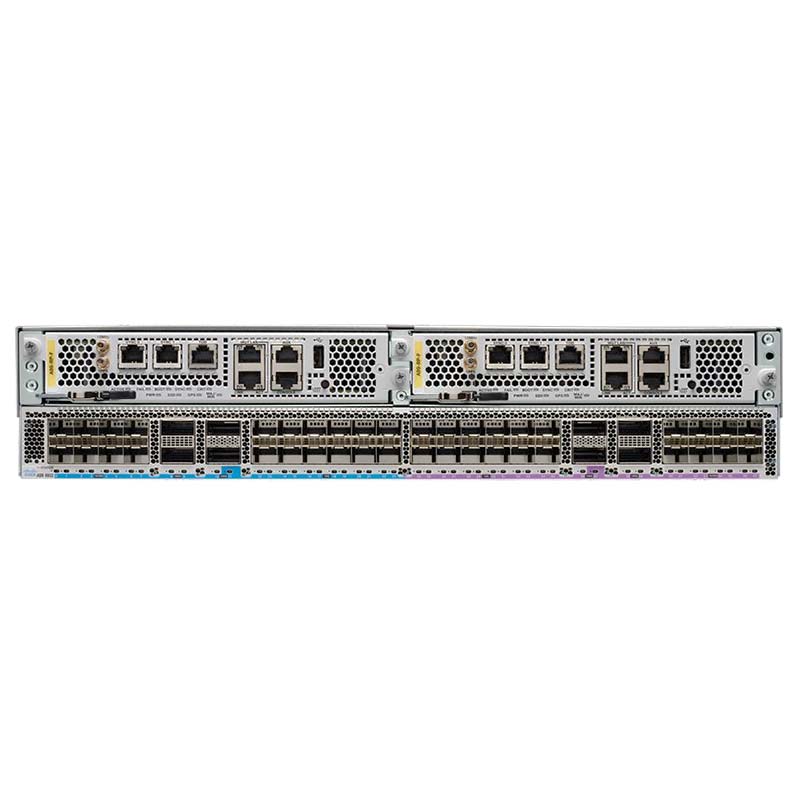

Cisco ASR 9902 Aggregation Services Router

Cisco ASR 9902 Aggregation Services Router
2 RU, with exceptional scalability

Part of the Cisco® ASR 9000 Series, the Cisco ASR 9902 Router is a compact, high-performance router that delivers up to 800 Gbps of nonblocking, full-duplex capacity in a Two-Rack-Unit (2RU) form factor. Based on the same Cisco IOS XR software image as the other routers in the Cisco ASR 9000 Series, the Cisco ASR 9902 Router delivers the features and services found on the ASR 9000 Series platforms, allowing customers to standardize on the same Cisco IOS XR operating system. Multiple port rates are supported by ASR 9902: 100/40 Gigabit Ethernet, 25 Gigabit Ethernet, and 10 Gigabit Ethernet, providing customers the flexibility to mix and match interface types on the same chassis and offering operators the readiness for mass-scale networking.

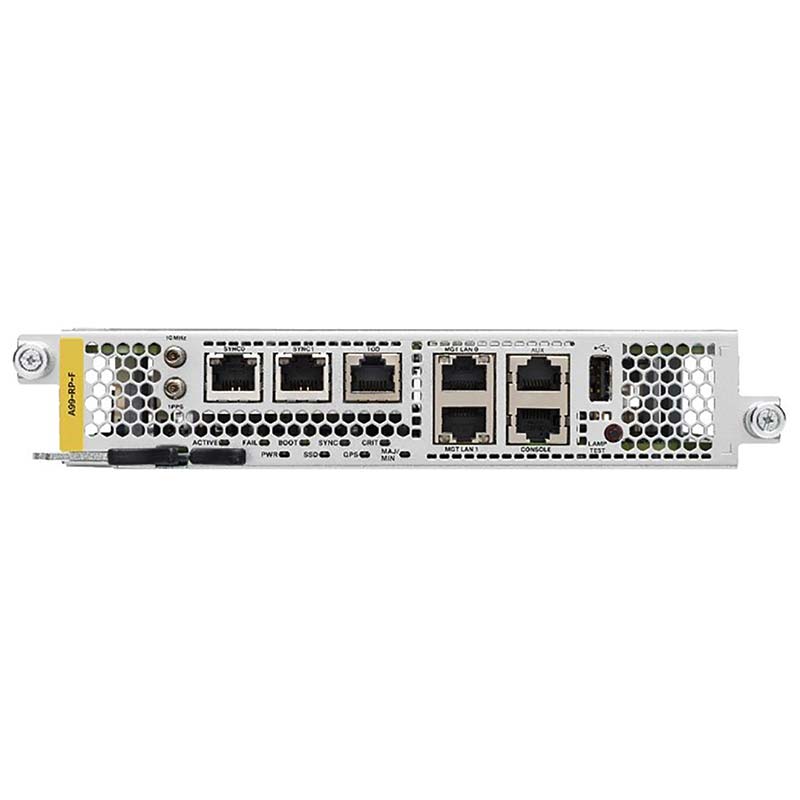

The Cisco ASR 9902 Router is a compact router that supports two redundant Route Processors (RPs), an integrated switch fabric, 2 AC or DC power supply modules, and 3 fans in redundant configuration. The router consists of the fixed board, with 2 integrated QSFP-DD-based 100GE ports, 6 integrated QSFP28-based 100GE ports, and 16 integrated SFP28-based 25GE/10GE dual-rate ports, plus 24 integrated SFP+-based LAN/WAN (OTN) ports. All ports also support MACSec.

ASR 9902 Specifications

• 2 RU
• Up to 1.6 Tbps
• 2 RPs and Integrated Ethernet Ports
• Performance:
  • 10-Gbps line-rate throughput per SFP+ port
  • 25-Gbps line-rate throughput per SFP28 port
  • 2100-Gbps line-rate throughput per QSFP28 or QSFP-DD port

Please refer to Cisco ASR 9902 Data Sheet for additional specifications.
