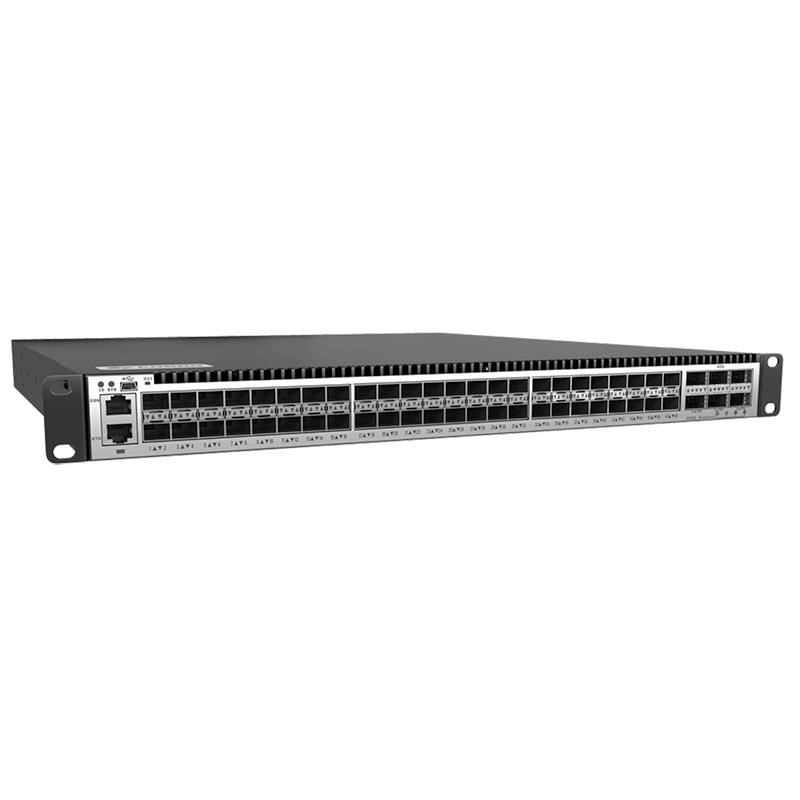

Cubro CUB.PM-EX484-3 Network Packet Broker

Cubro CUB.PM-EX484-3 Network Packet Broker
A modestly-priced solution for high port density 10/40G networks

Supports traffic modification up to layer 4

The CUB.PM-EX484-3 Network Packet Broker is the modestly-priced answer for testing high port density 10/40G networks. The EX484-3 Packetmasters provides user-defined filters and performs packet slicing.

The EX484-3 features forty-eight x 1 or 10G SFP+ and six x 40G QSFP interfaces that offer exceptional port density and other ROI-maximizing features. The six x 40G QSFP ports also support breakout cables to individual four x 1/10G connections, potentialy bringing the 1/10G link capacity up to a possible 72 x 1/10G interfaces.

• Load-balances and filters 10 Gbps or 40 Gbps traffic to multiple 1 Gbps monitoring tools
• forty-eight x 1/10 Gbps (SFP/SFP+) and six x 40 Gbps (QSFP)
• Supports traffic modifications up to layer 4
• Supports changing, removing and adding VLAN, MPLS, VXLAN, NVGRE, GRE, GENEVE tags/ tunnels
• Aggregates multiple 1 Gbps links to 10 or 40 Gbps monitoring tools
• Support for IPv6
• No additional port licensing costs or licensing fees. Price is all-inclusive
• See Data Sheet for complete specifications

The EX484-3 is your choice where you need to access 1G, 10G, or even 40G links. Potentialy create a high-bandwidth backbone between Packet Brokers or backhaul to and from remote sites with EX484-3’s multiple 40G ports.
